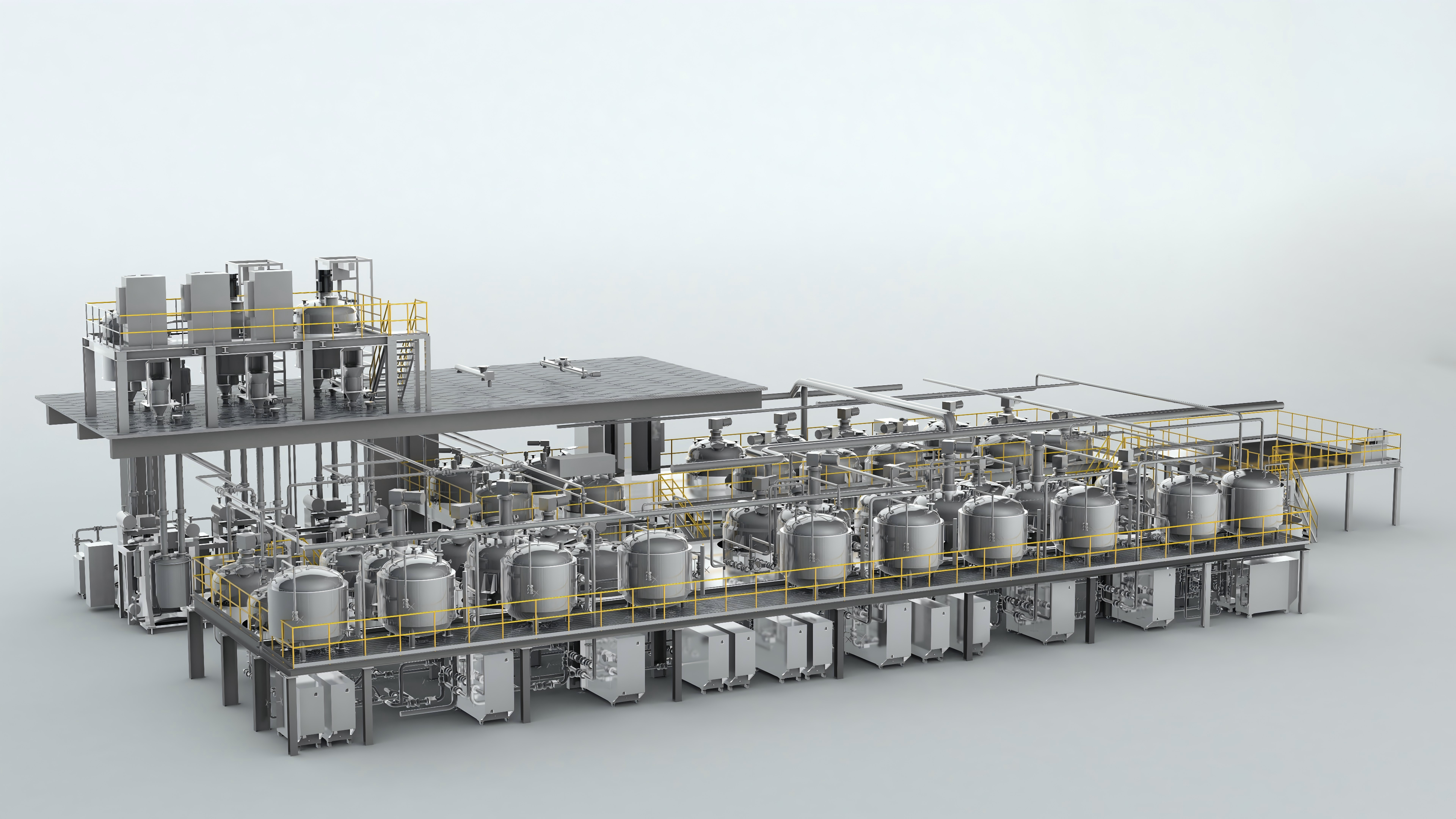

Liquid Boehmite Preparation System

Time：2025-08-04

Source：SOPHON

Case Data

Region	Jiangsu Province	Industry	New Energy Industry
Applicable Solution	Liquid Boehmite Preparation System	Advantages	Overall construction cost reduced by 20%, with stable equipment operation, enhancing production efficiency and product quality while lowering operational costs. Project Features: An EPC turnkey project achieving a 20% reduction in overall construction cost.
Project Features	For EPC general contracting projects, the overall construction cost is reduced by 20%.

Swipe right to view more

Case Introduction

The client is a leading domestic enterprise in the coated separator industry, specializing in the R&D and production of functional separator materials for high-safety lithium-ion batteries and aluminum-plastic composite packaging films. Its independently developed coating technology has broken the market monopoly previously held by Japanese companies. Through vertical integration of the industry chain, it has established a film business division system. Currently operating 104 coated separator production lines, the company has an annual production capacity of 500 million square meters.

With the rapid development of the lithium-ion battery industry, the demand for high-performance separator materials is increasing day by day. As an important diaphragm coating material, the optimization and improvement of the preparation process of boehmite are of vital importance. The customer initiated the liquid Boehmite preparation system project, aiming to create an efficient, stable and automated pulping system to meet the demands of large-scale production and enhance market competitiveness

SOPHON participates in the water-based slurry preparation system. Its raw material components include: automated metering and conveying of pure water, aluminum hydroxide, and dispersant (viscosity ≤ 100CP); automated conveying and coarse grinding of premix; stirring; automated dispersion; as well as slurry transfer, slurry filtration for iron removal, slurry fine grinding, finished slurry buffering, finished slurry pumping, finished slurry filtration for iron removal, automatic temperature control, and system automation control.

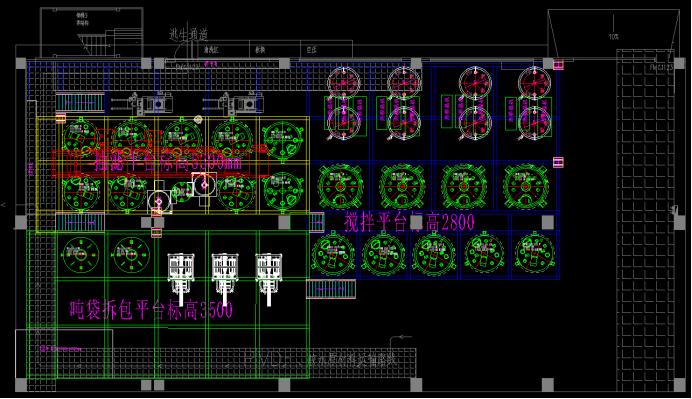

Fully Automated Control: The entire process from raw material powder input to finished slurry output is automated, minimizing manual intervention. Quality Traceability System: A comprehensive product traceability system has been established to provide detailed records of the production process for each batch, including raw material information, process parameters, and equipment operating status. Convenient Maintenance and Management: The equipment is designed with an emphasis on ease of maintenance, featuring a simple structure that is easy to disassemble and install, facilitating daily upkeep. Rational Equipment Spatial Layout: The layout makes efficient use of plant space, reducing the footprint and lowering facility investment costs. This is complemented by optimized process flows and equipment design.

Project Features: An EPC turnkey project achieving a 20% reduction in overall construction cost.

Customer Review

This liquid boehmite preparation system has been in use for more than two years. During this period, the equipment has operated stably and reliably without any adverse feedback. The degree of automation of the system, the stability of product quality and the overall implementation effect of the project were highly praised. It was believed that the system not only met the production needs, improved production efficiency and product quality, but also reduced the operating costs for the enterprise and enhanced its market competitiveness.

Mr. Liang

Engineer

Metal Oxide Automated Production System (5,000 tons/year)

Return list

No more for now

Creating Values for Customers

Production efficiency increased by 20%

Labor costs reduced by 20%

Accuracy of metering and batching can reach up to 2%, lowering the defect rate.

Highly automated; simple and convenient operation
